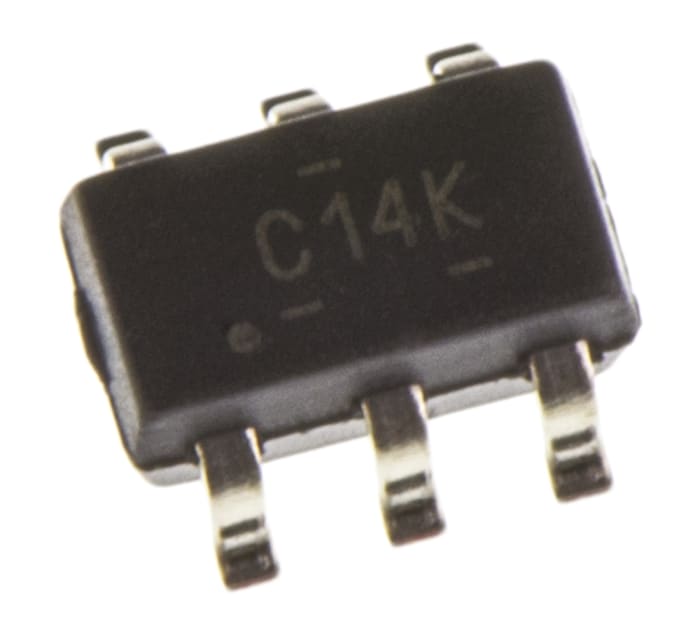

Texas Instruments 2 Schmitt Trigger Input CMOS Inverter, 6-Pin SOT-23
Technical Document
Specifications
Brand
Texas InstrumentsProduct Type
CMOS Inverter
Logic Function
Inverter
Input Type
Schmitt Trigger
Number of Elements per Chip
2
Schmitt Trigger Input
Yes
Maximum Propagation Delay Time @ CL
10.5ns
Maximum High Level Output Current
-32mA
Maximum Low Level Output Current
32mA
Minimum Supply Voltage
1.65V
Mount Type
Surface
Package Type
SOT-23
Maximum Supply Voltage
5.5V
Pin Count
6
Minimum Operating Temperature
-40°C
Logic Family
LVC
Maximum Operating Temperature
85°C
Width
1.6 mm
Height
1.15mm
Length
2.9mm
Standards/Approvals
No
Series
SN74LVC2G14
Automotive Standard
No
Product details
74LVC2G Family, Texas Instruments
Low-Voltage CMOS logic
Single gate package
Operating Voltage: 1.65 to 5.5 V
Compatibility: Input LVTTL/TTL, Output LVCMOS
74LVC Family
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
27.50 MOP
2.751 MOP Each (Supplied on a Reel) (ex VAT)
Production pack (Reel)
10
27.50 MOP
2.751 MOP Each (Supplied on a Reel) (ex VAT)
Stock information temporarily unavailable.
Production pack (Reel)
10
