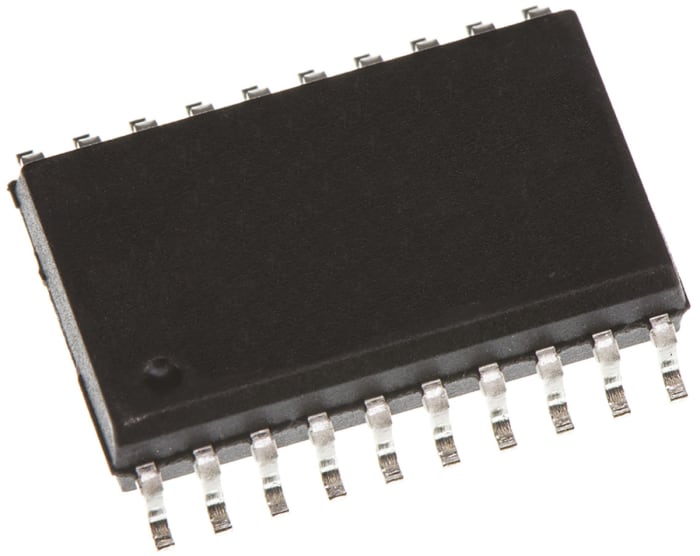

Texas Instruments Line Transceiver, 8-Bit Inverting Open Collector, 20-Pin SOIC

RS Stock No.: 660-9192PBrand: Texas InstrumentsManufacturers Part No.: SN75160BDW
brand-logo
View all in Bus Transceivers

Technical Document

Specifications

Brand

Texas Instruments

Logic Family

Transceiver

Product Type

Line Transceiver

Logic Function

Transceiver

Number of Channels

8

Polarity

Inverting

Mount Type

Surface

Package Type

SOIC

Minimum Supply Voltage

4.75V

Pin Count

20

Maximum Supply Voltage

5.25V

Input Level

CMOS

Maximum Propagation Delay Time @ CL

20ns

Minimum Operating Temperature

0°C

Output Level

Open Collector

Maximum Operating Temperature

70°C

Maximum High Level Output Current

-5.2mA

Maximum Low Level Output Current

48mA

Width

7.52 mm

Height

2.35mm

Length

12.8mm

Standards/Approvals

No

Series

SN75160B

Output Type

Open Collector

Automotive Standard

No
