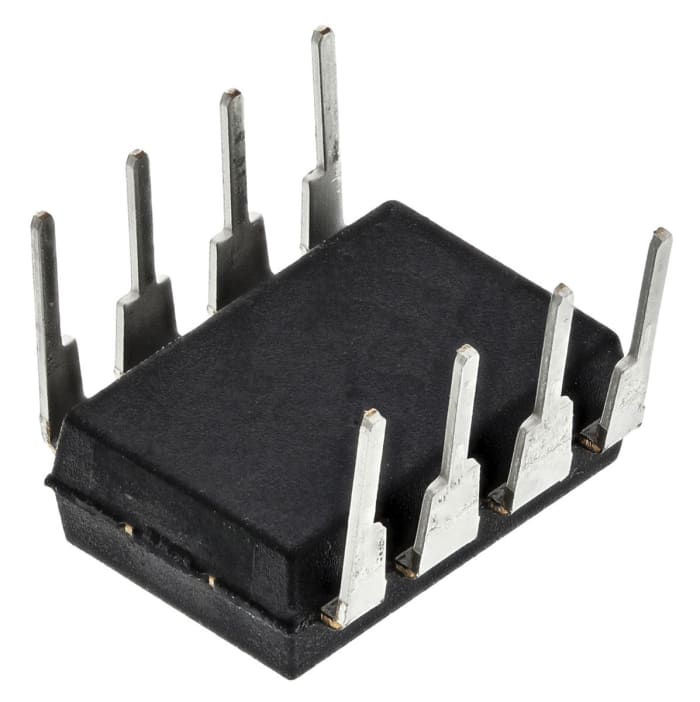

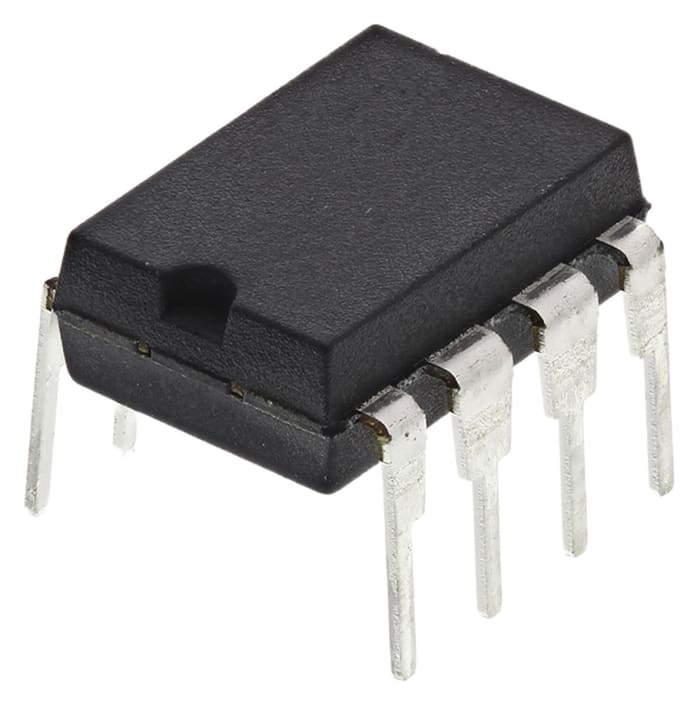

TLC2272IP Texas Instruments, Operational Amplifier, 2.2 MHz, 8-Pin 8 V PDIP

RS Stock No.: 331-2176Brand: Texas InstrumentsManufacturers Part No.: TLC2272IP
brand-logo
View all in Op Amps

Technical Document

Specifications

Brand

Texas Instruments

Product Type

Operational Amplifier

Mount Type

Through Hole

Package Type

PDIP

Number of Channels

2

Pin Count

8

GBP - Gain Bandwidth Product

2.2MHz

Maximum Supply Voltage

8V

Minimum Supply Voltage

5V

Input Bias Current

800 pA

Minimum Operating Temperature

-40°C

Vos - Input Offset Voltage

3 mV

Slew Rate

3.6V/μs

Maximum Operating Temperature

125°C

Width

6.35 mm

Series

TLC2272

Height

4.57mm

Length

9.81mm

Standards/Approvals

RoHS

Output Current

50mA

Automotive Standard

AEC-Q100

Input Offset Current

800 pA

Product details

LinCMOS Operational Amplifiers
