Banner Diffuse Photoelectric Sensor, Block Sensor

Name: Banner Diffuse Photoelectric Sensor, Block Sensor
Brand: Banner
SKU: 3623892
Availability: LimitedAvailability

RS Stock No.: 362-3892Brand: BannerManufacturers Part No.: SME312DQD

View all in Photoelectric Sensors

Technical Documents

Specifications

Brand

Banner

Product Type

Photoelectric Sensor

Sensor Style

Block

Detection Type

Diffuse

Output Type

PNP

Terminal Type

5-Pin M12

Maximum DC Voltage

30V dc

Light Source

Infrared

Minimum Operating Temperature

-20°C

IP Rating

IP67

Maximum Current

150mA

Maximum Operating Temperature

70°C

Standards/Approvals

IEC

Response Time

500μs

Hazardous Area Certification

Series

MINI-BEAM

Housing Material

Reinforced Thermoplastic

Mount Type

Flat Mount

Detection Range

380 mm

Country of Origin

United States

Product Details

Mini-Beam SM312 Series Sensors

The SM312 series of photoelectric sensors from Banner are self contained DC operated sensors. This Mini-Beam SM312 series are compact high performance sensors with 18 mm threaded lens, The SM312 Series are ideal for registration mark detection, baggage handling and bottle conveying applications.

Expert models with push button TEACH mode configuration available
Plastic housing, M18 front "nose" mount or screw fixing
Push button or remote programming
Automatic, Precise, Low contrast sensitivity adjustments
Bipolar output, light-on/dark-on functions
Multi-function LEDs for easy set-up and monitoring
Full electrical protection
Available in opposed, opposed clear plastic, polarized, non-polarized retro-reflective, convergent and diffuse

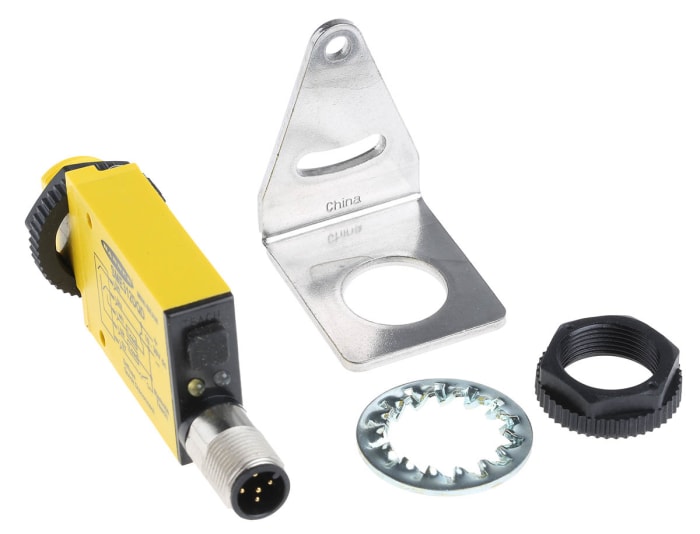

Supplied with

Mounting bracket, Retro-reflective models are also supplied with a reflector.
