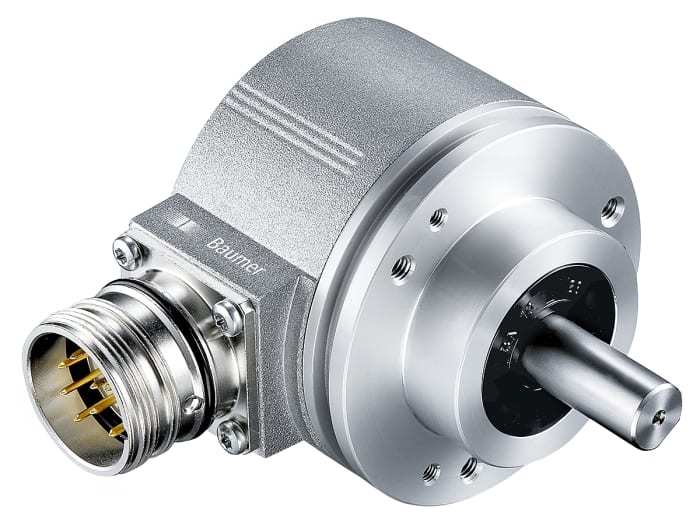

Baumer EIL580 Series Optical Incremental Encoder 30V dc, 1000 ppr ppr, HTL/Push Pull Signal, Solid Type, 10 mm Shaft

Brand

Product Type

Incremental Encoder

Encoder Technology

Optical

Pulses Per Revolution

1000ppr

Series

EIL580

Maximum Revolutions

12000rpm

Output Signal Type

HTL/Push Pull

Shaft Type

Solid

Shaft Diameter

10mm

Interface Type

Push Pull

Terminal Type

M12 Flange Connector

IP Rating

IP65

Maximum Supply Voltage

30V dc

Minimum Operating Temperature

-40°C

Overall Depth

48mm

Overall Height

63mm

Overall Width

58mm

Standards/Approvals

UL

Maximum Operating Temperature

85°C

Mount Type

Clamping Flange Mount

Switching Frequency

300kHz

Country of Origin

Germany
