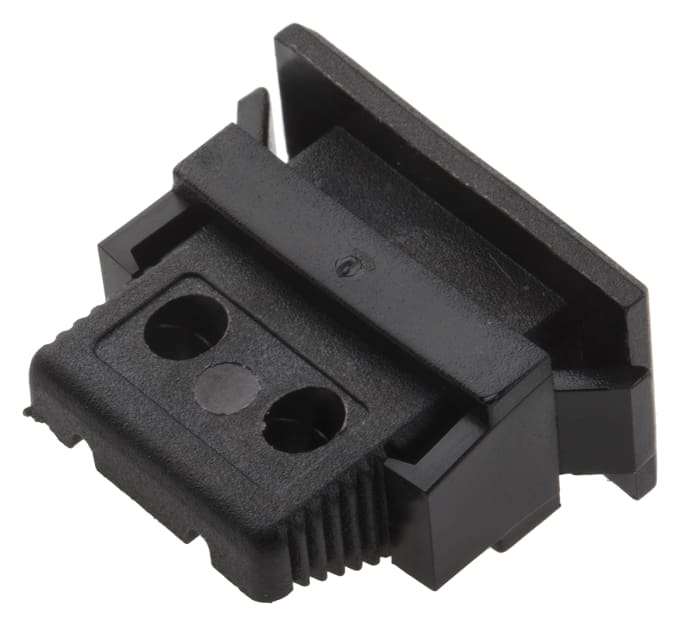

RS PRO Miniature Blanking Plug for Use with Connector Faceplate, RoHS Standard

Anodised Aluminium Faceplates

Faceplates suitable for mounting thermocouple panel sockets

• Height: Standard 66mm, Miniature 45mm
• Formula for Length: Standard (19 x n) + 31mm, Miniature (15 x n) + 25mm, n = number of ways
• Fixing holes 4 x 3.25mm diameter, 5mm in from each edge
• Anodised Aluminium Faceplates
• Suitable for miniature & standard fascia panel mounting thermocouple sockets
• Etch matt & satin anodised finish
• Miniature size panels available in 2, 4, 6, 12, 16, 20 & 24 way
• Standard size panels available in 1, 2, 3, 4 & 6 way
• 1 to 12 way panels in single row (as shown)
• 16, 20 & 24 way panels are in two rows i.e. 16 way = 2 rows of eight, 20 way = 2 rows of 10, 24 way
• = 2 rows of 12
• Both miniature & standard panels have 4 x 3.2mm fixing holes, positioned 5mm centre line from
• corners edges
