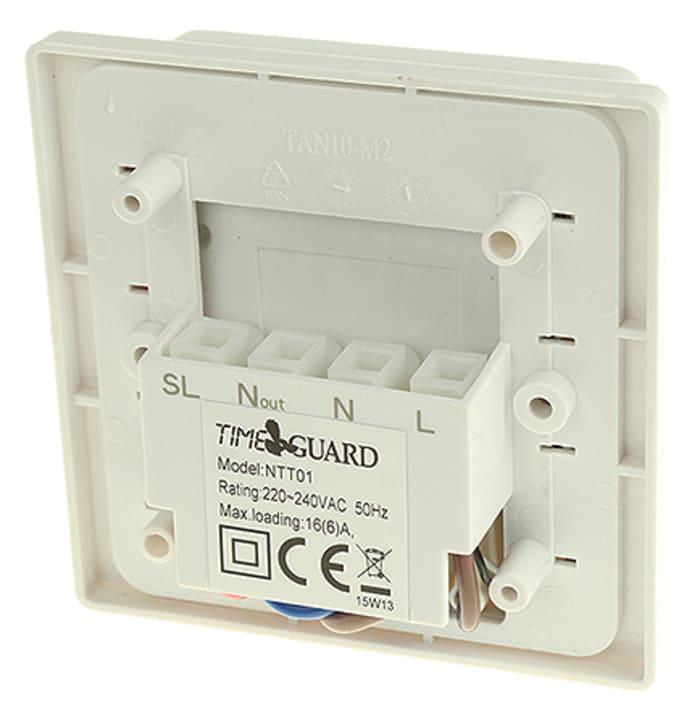

Timeguard NTT01 Time Switch 230V ac

Name: Timeguard NTT01 Time Switch 230V ac
Brand: Timeguard
SKU: 8215051
Availability: LimitedAvailability

RS Stock No.: 821-5051Brand: TimeguardManufacturers Part No.: NTT01

Technical Documents

Specifications

Brand

Product Type

Time Switch

Number of Channels

Units Measured

Minutes

Segment Length

24h

Terminal Type

Screw

Maximum Supply Voltage

230V ac

Height

92mm

Depth

60mm

Standards/Approvals

CE, Conforms to latest EC Directives

Series

NTT01

Country of Origin

China

Product Details

The NTT01 is a 24 hour timeswitch for heater control.

24 hour compact immersion heater timeswitch
16(6)A load rating
96 quick-set segments for up to 48 ON/48 OFF programmes
LED status indicators (red and green)
Special Traffic Light slider switch for easy ON (green), Auto (green and red) and OFF (red) mode indication
Switches ON and OFF at preset times
Easy to use captive segment dial
Permanent ON/OFF control
Fits a standard flush or surface mount box min. 32mm deep

The NTT01 is a 24 hour timeswitch for heater control.

24 hour compact immersion heater timeswitch
16(6)A load rating
96 quick-set segments for up to 48 ON/48 OFF programmes
LED status indicators (red and green)
Special Traffic Light slider switch for easy ON (green), Auto (green and red) and OFF (red) mode indication
Switches ON and OFF at preset times
Easy to use captive segment dial
Permanent ON/OFF control
Fits a standard flush or surface mount box min. 32mm deep
