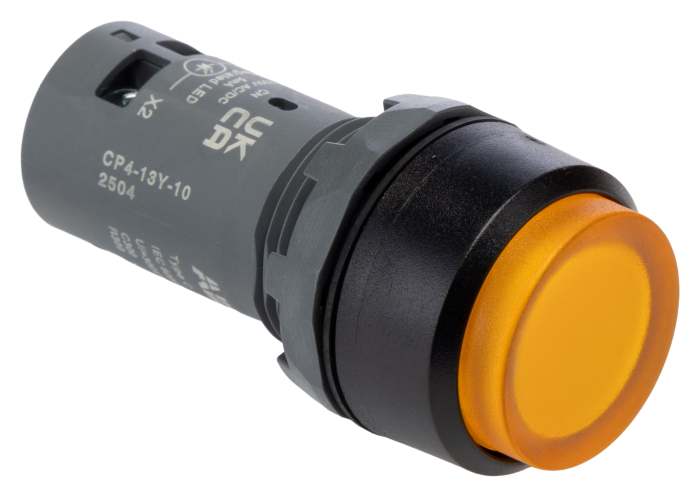

ABB CP4 Series Illuminated Push Button Switch, Panel Yellow, SPST, IP20, IP66, IP67, IP69K

ABB CP4 Series Push Button Switch, 130V Illumination Voltage, Yellow - 1SFA619103R1313

This push-button switch is an illuminated control device designed for panel mounting in industrial automation and electrical systems. It provides a maintained push action with a single-pole single-throw contact arrangement and is suited to environments where Visual signalling and rugged ingress protection are required.

Features and Benefits:

• Illuminated operation at 130V providing clear status indication
  Maintained actuation enabling stable on/off control for processes
  SPST contact offering straightforward circuit switching capability
  Screw terminals simplifying secure wiring connections
  IP67 IP69K environmental rating permitting washdown and dust protection
  Operating range from -25°C to 70°C supporting varied ambient conditions

Applications

• Suitable for machine control panels requiring visible status indication
  Ideal for food-processing lines needing high-pressure washdown resistance
  Used for electrical control cubicles where Compact panel mounting is required
  Can be used for maintenance circuits requiring a maintained on/off selector
  Suitable for replacement of colourful operator controls in automation panels

How is the device wired into a control circuit?

It uses screw-type terminals for a single-pole single-throw connection, allowing a simple in-line switching arrangement with standard stranded or solid conductors.

What material ensures durability of the actuator under frequent use?

The actuator is formed from a robust plastic compound designed to withstand repeated manual operation in industrial settings.

Can this switch be used where fluid ingress is a concern?

Yes, the unit’s high ingress protection includes IP67 and IP69K ratings, permitting temporary immersion and high-pressure, high-temperature washdown applications.

What mounting method is required for installation?

It is intended for panel mounting, fitting into standard cut-outs and secured from the rear to provide a stable front-panel control element.
