技術文件
規格
Brand
AmprobeProduct Type
Multimeter
Multimeter Type
Digital
Display Type
Digital
Functions Measured
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Resistance, Temperature
True RMS
No
DC Current Accuracy
±1 % rdg + 2 Digits
AC Voltage Accuracy
±1 % rdg + 3 Digits
AC Current Accuracy
± 1.2 % rdg + 3 Digits
DC Voltage Accuracy
±0.8 % rdg + 1 Digits
Maximum Frequency
400Hz
Resistance Measurement Accuracy
±1.2 % rdg + 2 Digits
Height
45mm
Length
182mm
Weight
354g
Standards/Approvals
No
Width
90mm
Safety Category Level
CAT II, CAT III
Safety Category Voltage
1000V
原產地
China
產品詳情

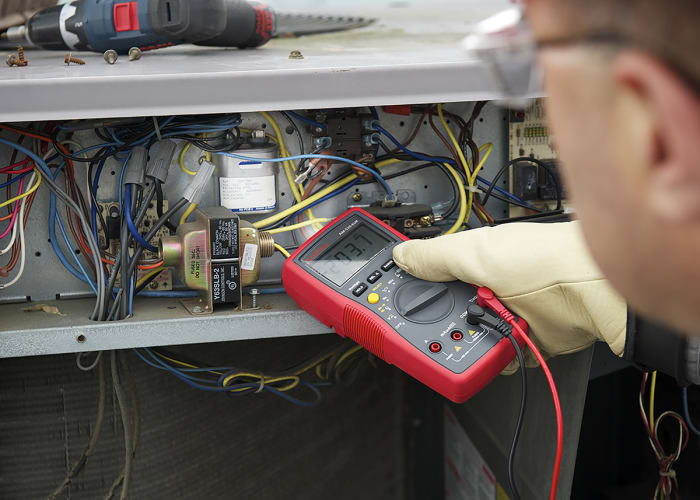

This multimeter is a handheld instrument designed for HVAC and electrical professionals to measure a wide range of electrical and temperature parameters in field environments. It provides voltage, current, resistance, capacitance and temperature measurement capability together with non-contact voltage detection and practical on-tool conveniences for troubleshooting and maintenance tasks.
It measures up to 10A for AC/DC current and up to 600V for both AC and DC ranges with autoranging and manual-ranging options.
The backlit LCD includes an analogue bar graph to help monitor fast-changing values alongside numeric readings.
A K-type thermocouple probe is provided and the input covers −40°C to 1000°C.
Capacitance ranges span from tens of nF to thousands of μF and frequency measurement extends from 10Hz to 10MHz for comprehensive component checks.
Audible continuity is included and a diode-test function provides forward-voltage verification for rectifiers and semiconductor checks.
CAT III 600V, CAT II 1000V
• 1 x 9V(6F22) battery installed
• Test leads
• 1 x Type-K probe
• Velcro strap
• Carrying case and users manual
1,043.38 MOP
Each (不含稅)
暫時無法取得庫存資訊。
1,185.30 MOP
1,185.28 MOP Each (不含稅)
Calibration type
No Calibration
1
1,185.30 MOP
1,185.28 MOP Each (不含稅)
暫時無法取得庫存資訊。
Calibration type
No Calibration
1
1,043.38 MOP
Each (不含稅)
