技術文件
規格
Brand
RS ProNumber of Contacts
5
Product Type
Circular Connector
Mount Type
Panel
Connector Size
M12
Current
4A
Plug/Socket
Socket
Contact Gender
Female
IP Rating
IP67
Series
CPF12
Orientation
Straight
Coding
A
Voltage
60.0V
Mating Type
Threaded
Minimum Operating Temperature
-25°C
Maximum Operating Temperature
75°C
Standards/Approvals
RoHS
Contact Plating
Gold
Contact Material
Copper
原產地
India
產品詳情

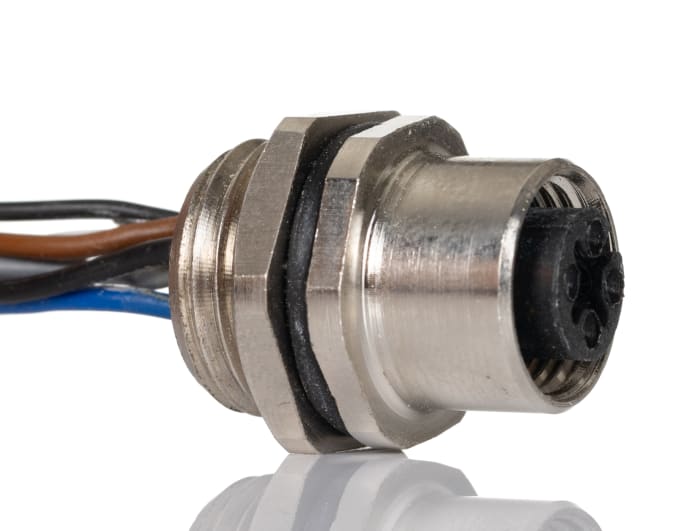

From RS PRO, a selection of M12 circular connectors designed for panel mounting. The sensor style connectors have an M12 threaded interface and industry standard A coding preventing miss-mating. Conveniently pre-terminated with partially stripped wires the RS PRO range are easy to incorporate into any automation or sensory application. With an IP67 ingress rating, the RS PRO panel mount connectors are ideally suited to harsh environments that demand a more rugged connection solution.
暫時無法取得庫存資訊。
88.00 MOP
88.00 MOP Each (不含稅)
1
88.00 MOP
88.00 MOP Each (不含稅)
暫時無法取得庫存資訊。
1
| 數量 | 單價 |
|---|---|
| 1 - 4 | 88.00 MOP |
| 5 - 9 | 84.50 MOP |
| 10 - 49 | 81.00 MOP |
| 50 - 249 | 79.25 MOP |
| 250+ | 65.23 MOP |
