技術文件
規格
Brand
TDKMounting Type
Through Hole
Minimum Supply Voltage
6V dc
Maximum Supply Voltage
12V dc
Sound Level
85dB
Drive Type
Internal
Diameter
16mm
Height
14mm
Dimensions
16 (Dia.) x 14mm
Minimum Operating Temperature
-10°C
Maximum Operating Temperature
+70°C
Maximum Frequency
2.048kHz
Supply Current
100mA
原產地
Japan
產品詳情

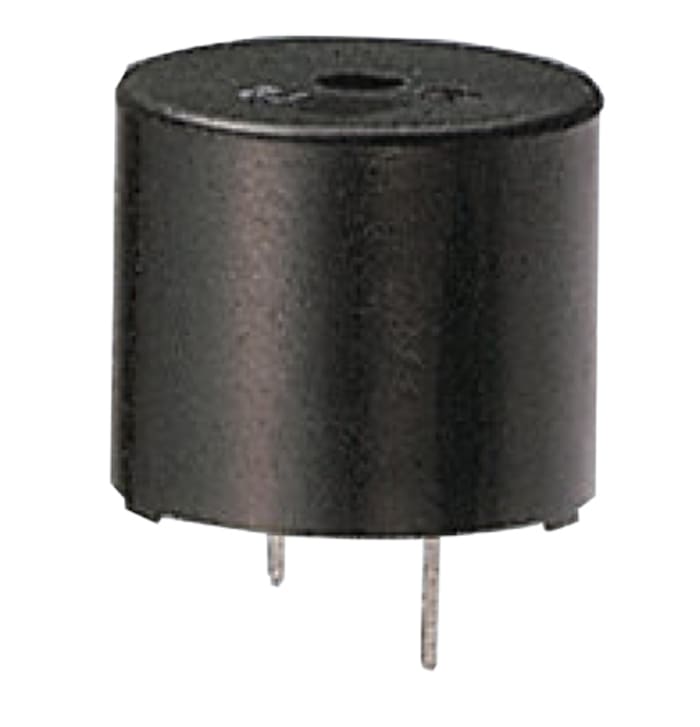

TDK SD series pin terminal electromagnetic buzzers are highly reliable buzzers for automobile equipment. The buzzers are compact, with a pin terminal which has a 2048Hz output. The pin terminal allows direct mounting onto printed circuit boards.
