技術文件
規格
Brand
TE ConnectivityProduct Type
Automotive Connector
Number of Contacts
3
Sub Type
Automotive Connector Housing
Termination Type
Crimp
Gender
Female
Number of Rows
1
Mount Type
Cable
Series
Junior Power Timer
Cord Included
No
Colour
Black
IP Rating
IPx9K, IP6K9K, IP69K, IP67, IP64K, IP54K
Minimum Operating Temperature
-30°C
Diameter
38.2mm
Maximum Operating Temperature
125°C
Height
24.5mm
Depth
38.2mm
Standards/Approvals
No
Width
30.4mm
Housing Material
Nylon
產品詳情

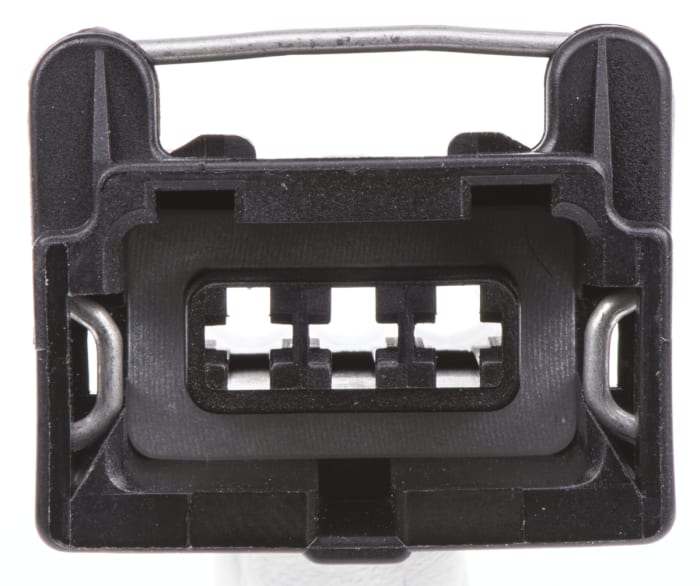

Junior Power timer receptacle style connector housings for socket contacts with a 5mm centreline. These receptacle housings are sealed and have a secondary locking mechanism.
Timer connector housings are accessible from power to high pin density PCB links with a broad range of cavity choices. These connectors recognize Timer contacts and are accessible in housings for pins and receptacles.
Features and Benefits
• Connector Style: Housing for female terminals.
• Connector System: Wire-to-Board, Wire-to-Device.
• Primary Locking Feature: Integrated in Housing, On the Terminal
• Number of Positions: 55
• Pitch: 5 mm
• Series: Junior Power Timer
醞釀。 創造。 合作
免費加入
無隱藏費用！
暫時無法取得庫存資訊。
10.80 MOP
10.82 MOP Each (不含稅)
標準
1
10.80 MOP
10.82 MOP Each (不含稅)
暫時無法取得庫存資訊。
標準
1
| 數量 | 單價 |
|---|---|
| 1 - 224 | 10.82 MOP |
| 225 - 449 | 10.61 MOP |
| 450+ | 10.51 MOP |
