技術文件
規格

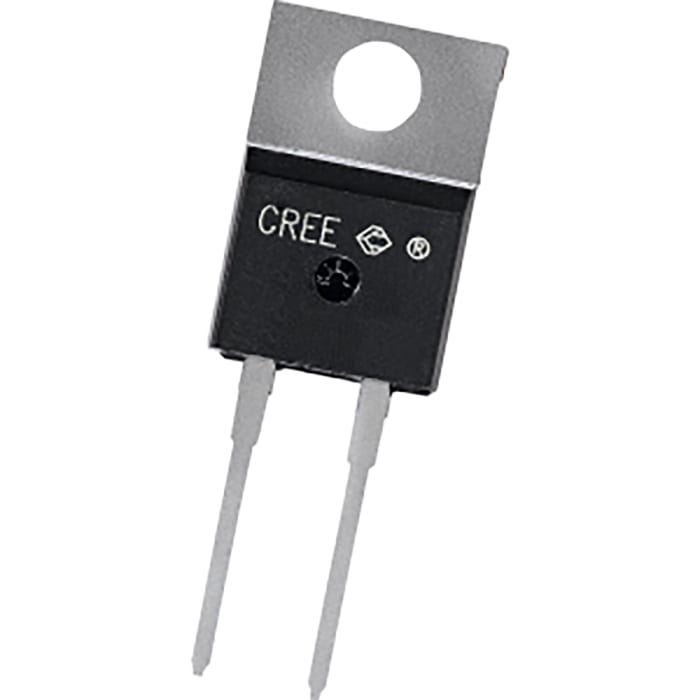

Brand
WolfspeedProduct Type
Rectifier & Schottky Diode
Mount Type
Through Hole
Package Type
TO-220
Maximum Continuous Forward Current If
6A
Peak Reverse Repetitive Voltage Vrrm
650V
Diode Configuration
Single
Series
Z-Rec
Rectifier Type
Schottky
Pin Count
2
Peak Reverse Current Ir
120μA
Maximum Forward Voltage Vf
1.6V
Minimum Operating Temperature
-55°C
Peak Non-Repetitive Forward Surge Current Ifsm
51A
Maximum Operating Temperature
175°C
Length
10.41mm
Height
29.13mm
Standards/Approvals
No
Width
4.7mm
Automotive Standard
No
產品詳情
醞釀。 創造。 合作
免費加入
無隱藏費用！
暫時無法取得庫存資訊。
803.40 MOP
16.068 MOP Each (In a Tube of 50) (不含稅)
50
803.40 MOP
16.068 MOP Each (In a Tube of 50) (不含稅)
暫時無法取得庫存資訊。
50
| 數量 | 單價 | 每管子 |
|---|---|---|
| 50 - 50 | 16.068 MOP | 803.38 MOP |
| 100 - 150 | 15.585 MOP | 779.26 MOP |
| 200+ | 15.117 MOP | 755.87 MOP |
